Daikin Cassette Air conditioner Indoor Pcb Circuit Board Daikin Inverter ModelVRF/VRF cassate unit indoor PCB board EB0510(C) DB-E91-101A

Name: Daikin Cassette Air conditioner Indoor Pcb Circuit Board Daikin Inverter ModelVRF/VRF cassate unit indoor PCB board EB0510(C) DB-E91-101A
SKU: R17M
Availability: InStock

Original price was: ₹11,999.00.Current price is: ₹6,999.00.

7 in stock

Add to wishlist

Compare

SKU: R17M Category: PCB BOARD (SEMI REFURBISHED) Tags: ac pcb board, ac pcb board new, ac spare parts, air conditioner pcb board, air conditioner pcb board new, daikin ac pcb board, daikin service, daikin service centre

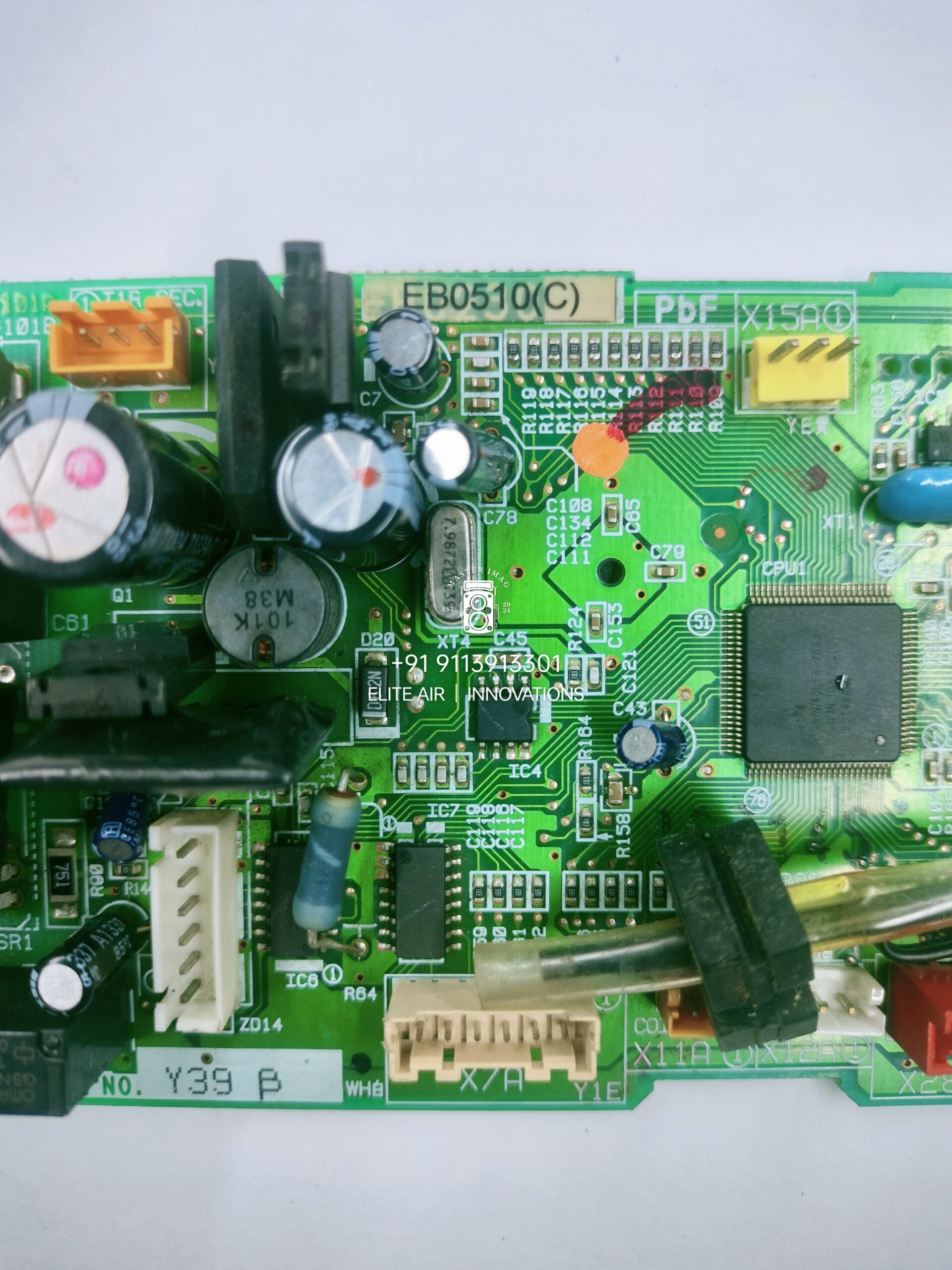

EB0510(C)

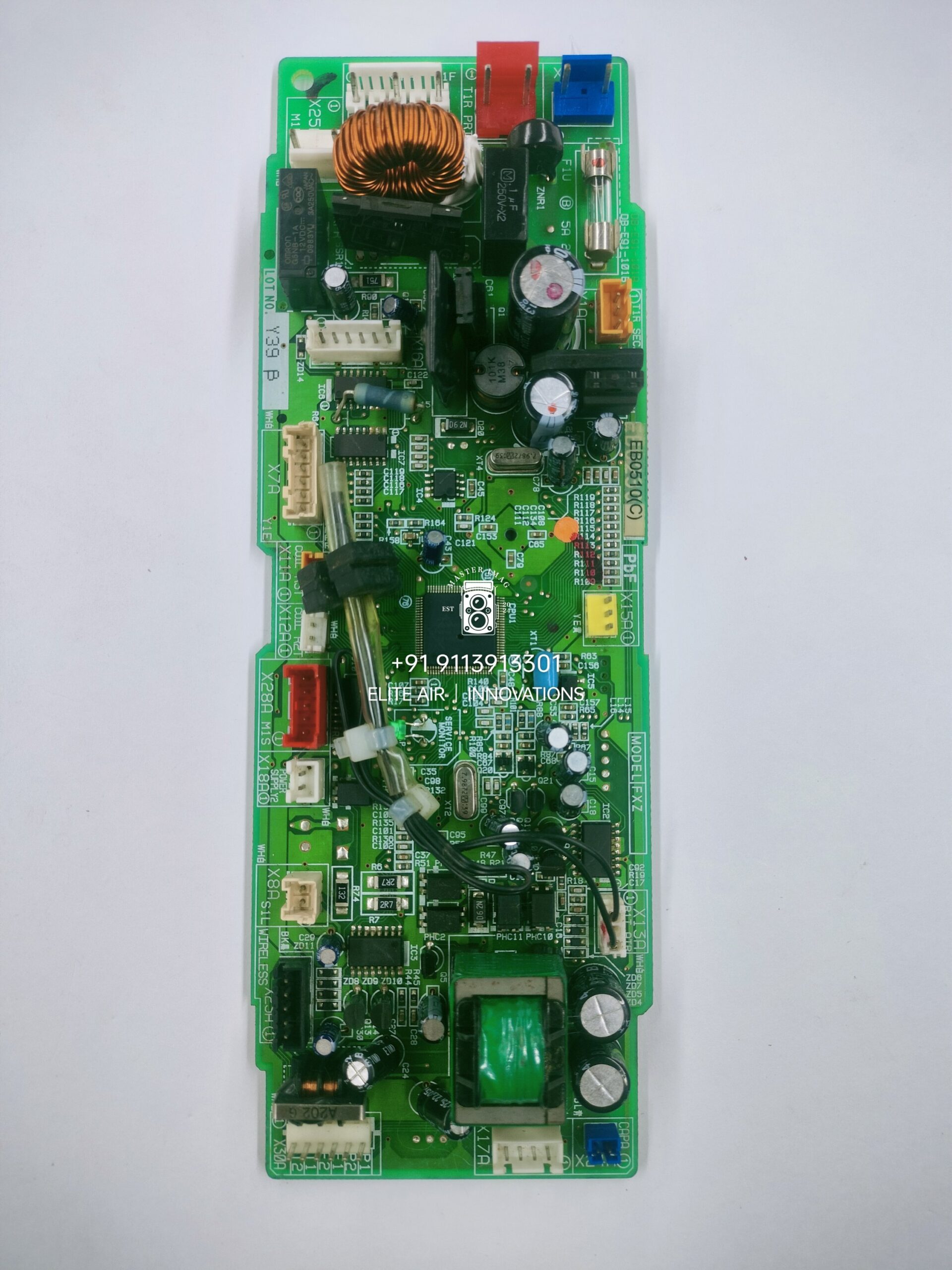

DB-E91-101A this is a Main Control PCB (Printed Circuit Board) typically found in high-end HVAC systems, specifically Inverter Air Conditioners (likely Daikin or a similar brand based on the “EB0510(B)” and “MODEL FXZHere is a detailed breakdown of the components and sections visible:
1. Power Supply Section (Bottom)
This area handles the incoming AC power and converts it into usable DC voltages for the board.
Fuse: A glass tube fuse (bottom left) provides overcurrent protection.

Inductor/Choke: The large copper coil wrapped around a ferrite core helps with EMI filtering and power factor correction
