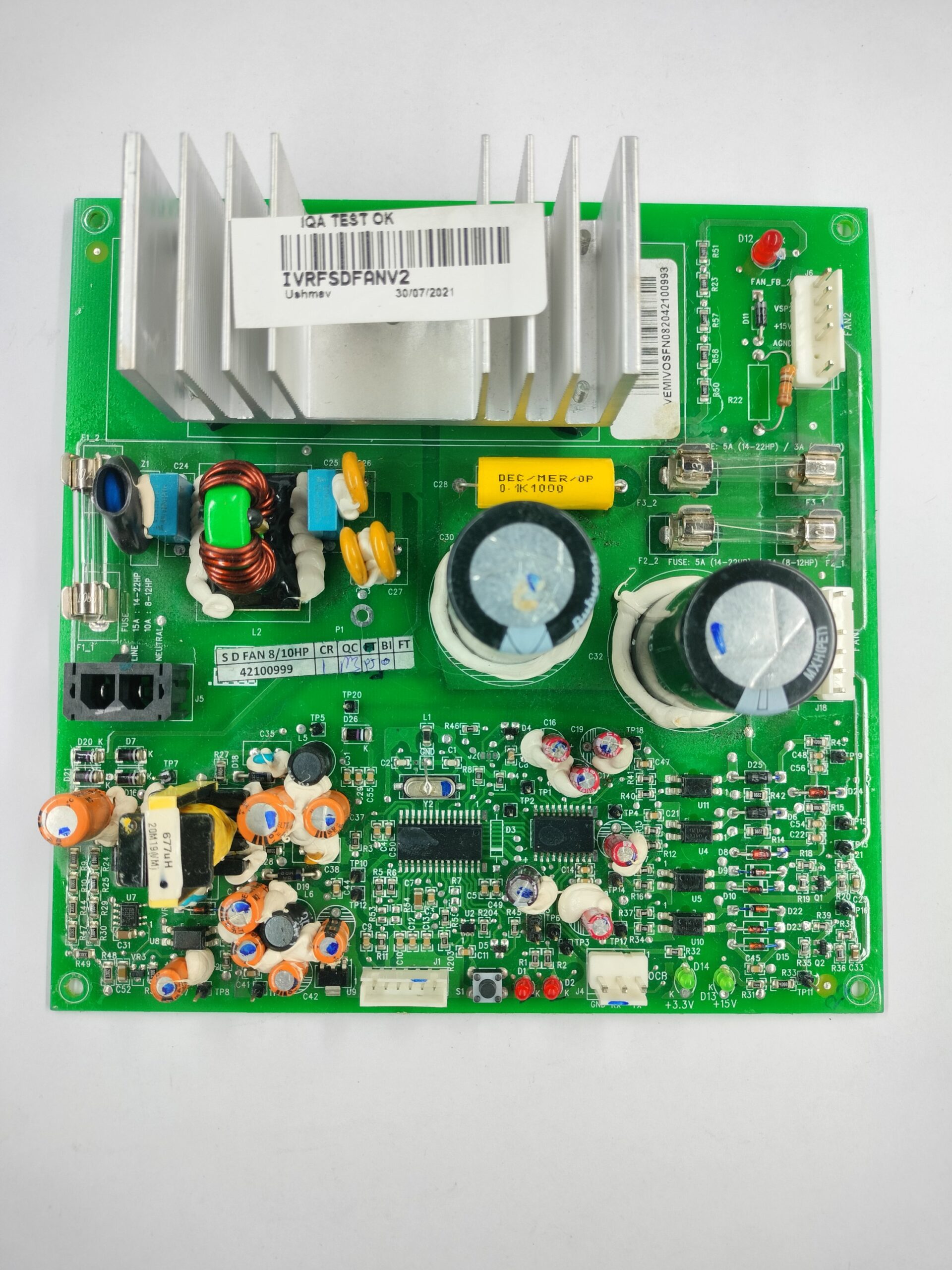

The Blue Star VRF Fan Control PCB Board is a genuine outdoor fan control circuit board used in Blue Star VRF air conditioning outdoor units. This PCB manages the condenser fan motor operation, communicates with the outdoor control system, and ensures efficient airflow, temperature regulation, and system protection.

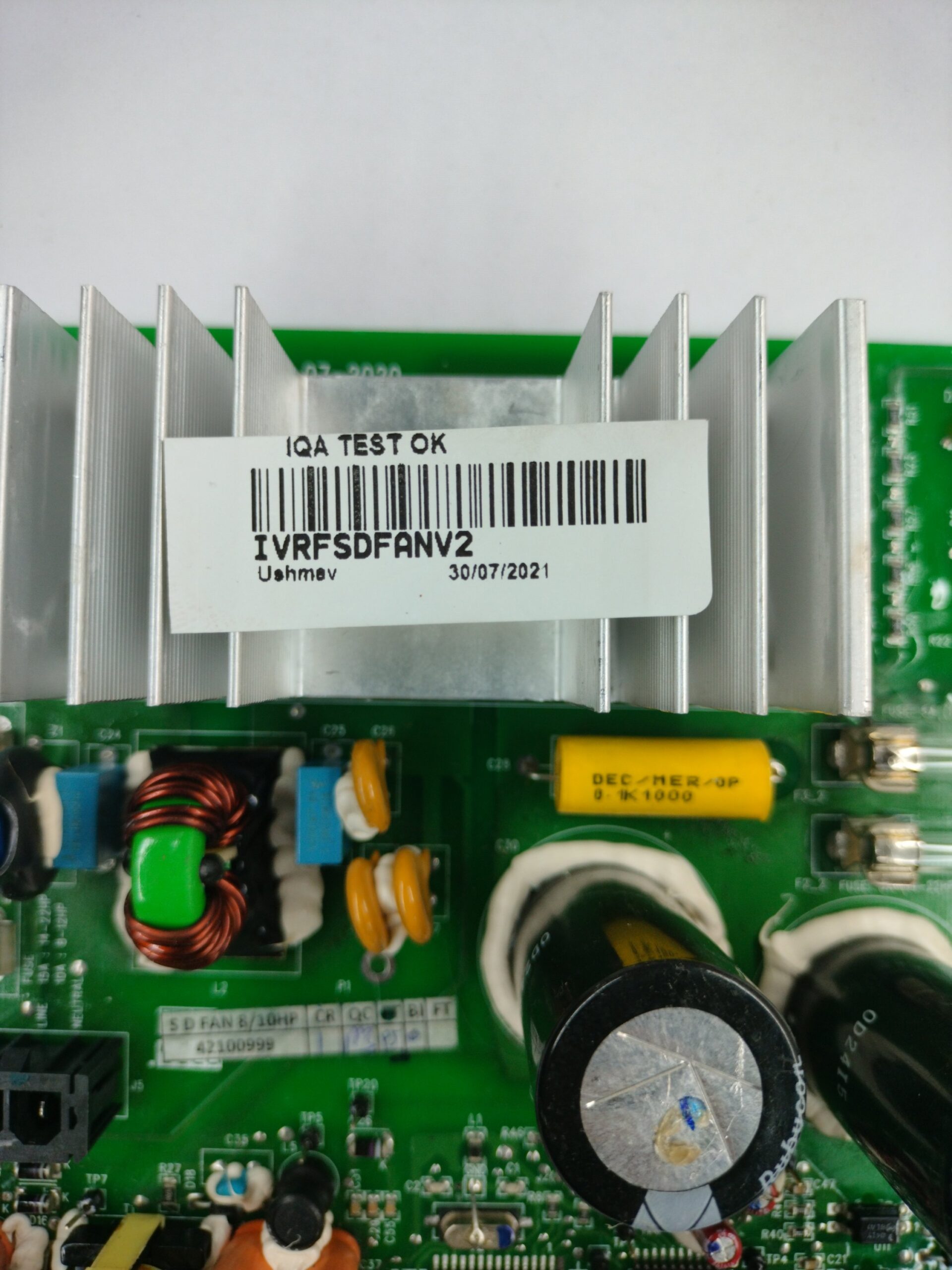

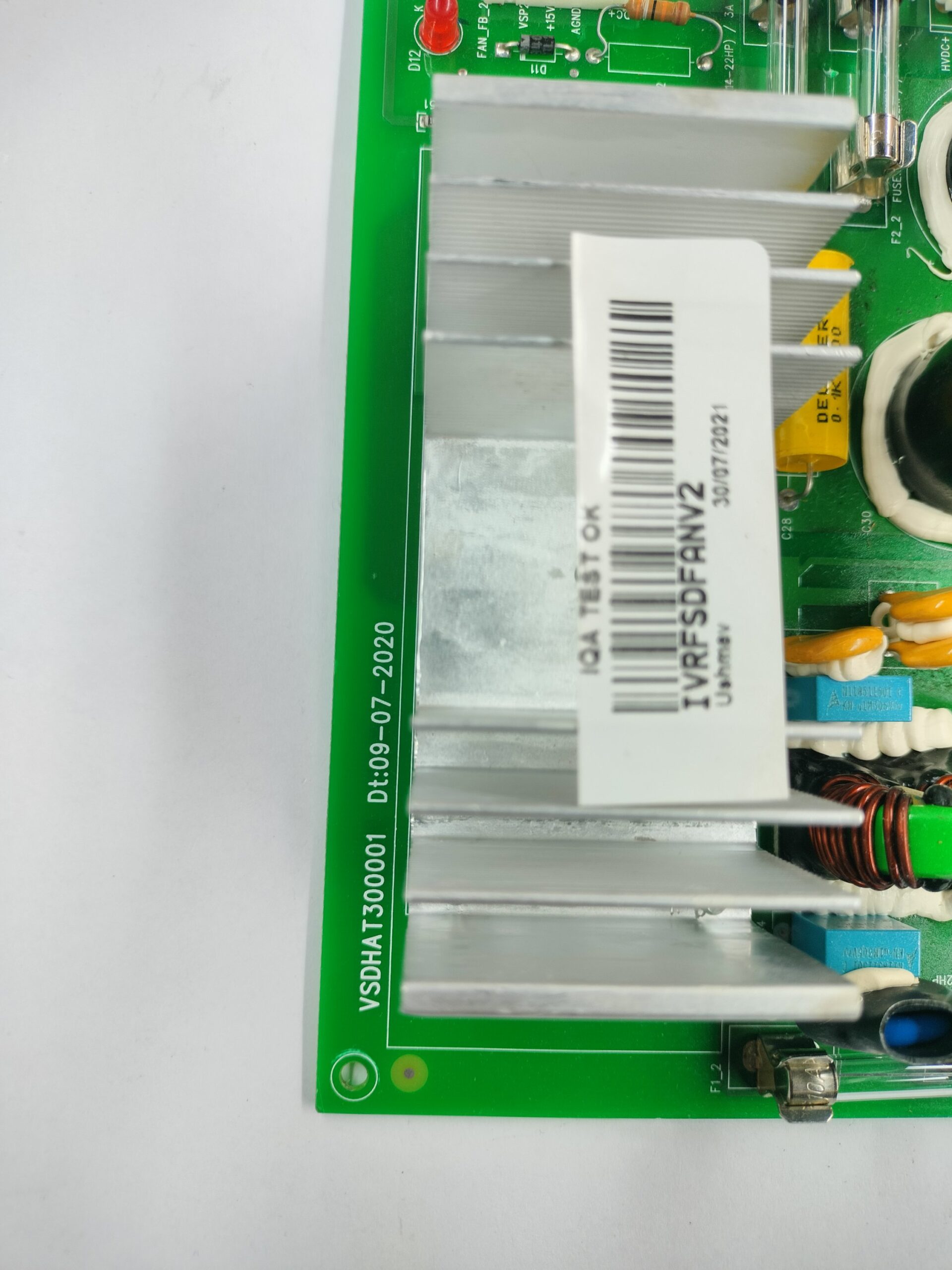

The board shown carries the following identifiers:

• Board Name: IVRFSDFANV2
  Part Number: VSDHA7300001

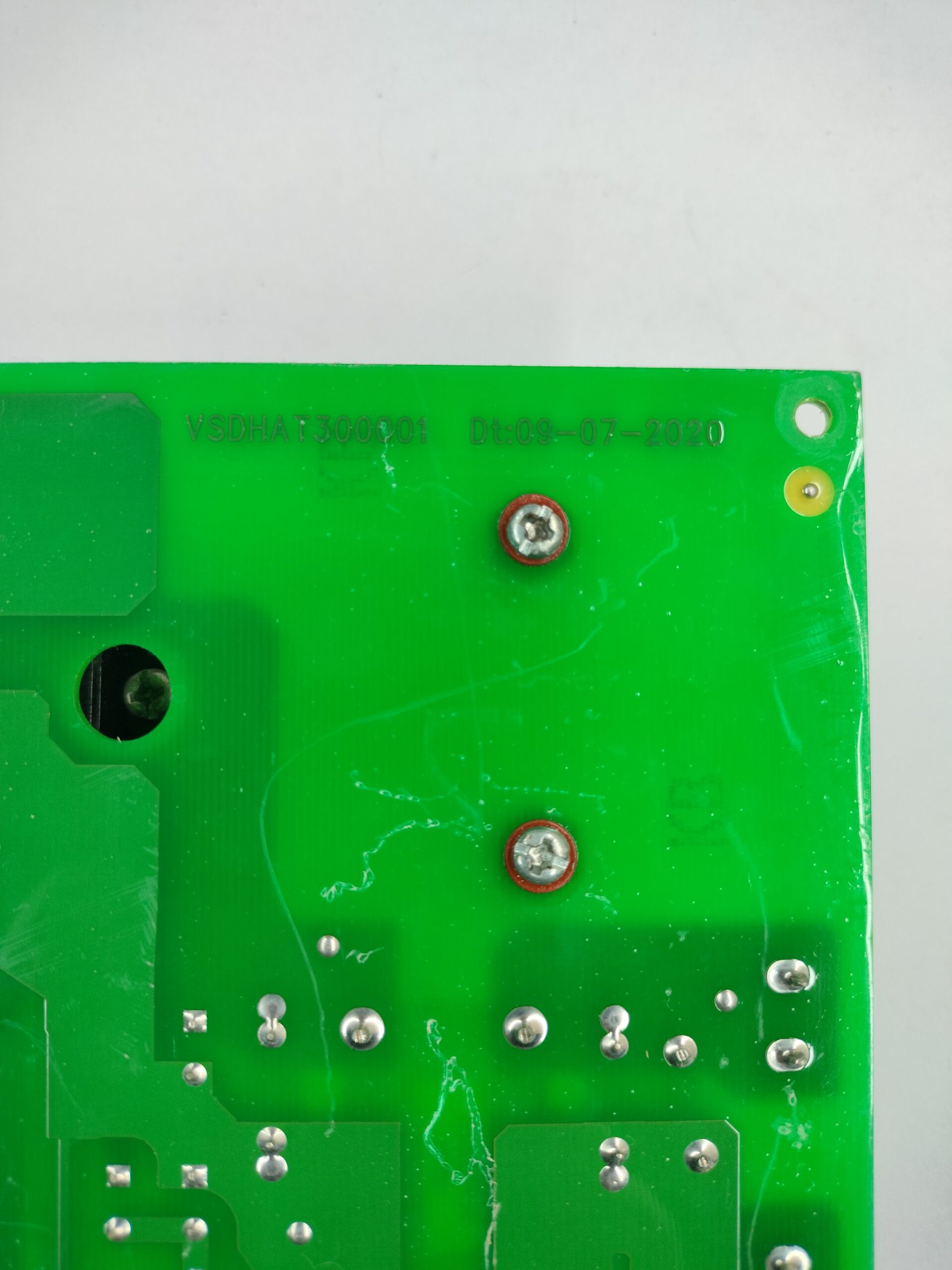

  Board Code: VSDHAT300001
  Manufacturing Date: 09-07-2020
  QA Label: Ushmav – 30/07/2021
  Serial/Barcode: VEMIVOSFN082042100993

It is suitable for repair or replacement of faulty Blue Star VRF outdoor fan control boards. Compatibility should always be confirmed using the part number before ordering. Blue Star VRF systems use inverter-driven technology for efficient cooling in commercial buildings.

Technical Specifications

• Product Name: Blue Star VRF Air Conditioner Fan Control PCB Board
  Brand: Blue Star
  Product Type: Outdoor Fan Control PCB Board
  Application: VRF (Variable Refrigerant Flow) Air Conditioner Outdoor Unit
  Board Name: IVRFSDFANV2
  Part Number: VSDHA7300001
  Board Code: VSDHAT300001
  Board Version: IVRFSDFANV2
  Manufacturer Label: Ushmav
  Manufacturing Date: 09-07-2020
  QA Test Date: 30-07-2021
  Serial / Barcode: VEMIVOSFN082042100993
  PCB Function: Controls the outdoor condenser fan motor speed and operation.
  System Compatibility: Blue Star VRF Outdoor Units (verify compatibility using the part number before installation).
  Control Technology: Inverter Fan Drive Control
  Cooling System Type: VRF (Variable Refrigerant Flow)
• Communication: Interfaces with the outdoor main control PCB for coordinated system operation.
  Protection Features: Integrated fuse protection, power filtering, and electronic protection circuits.
  Power Components: Heat sink, electrolytic capacitors, inductors, transformer, fuse holders, connectors, LEDs, and control ICs.
  PCB Mounting: Outdoor unit chassis mounting.
  Installation: Professional HVAC technician recommended.
  PCB Condition: Replacement spare part for Blue Star VRF outdoor fan control system.
  Country of Use: India
  HSN Category: Air Conditioner Spare Parts
  Suitable For: Commercial VRF Air Conditioning Systems.
