Lloyd’s inverter AC outdoor PCB is the main control board for the outdoor unit of a split AC system. It contains all the electronic components (microcontrollers, relays, sensors, etc.) that manage critical functions such as the compressor inverter and condenser fan motor. When you replace a failed PCB with this original-spec board, it re-establishes full communication between the indoor and outdoor sections of the air conditioner. This ensures that your Lloyd AC can efficiently maintain the set temperature with optimal performance.

Built for the Lloyd ACX series (2.0 Ton, 24,000 BTU) inverter units, this replacement PCB is marked with model 22WBPB6 and identifier “YSJ: KTN150” (a code indicating manufacturer details and compatibility). The board’s robust design features a thick copper layer and secure connectors, so it can handle the high currents needed for compressor control. A lead-free, high-quality finish on the board enhances longevity, even under continual operation.

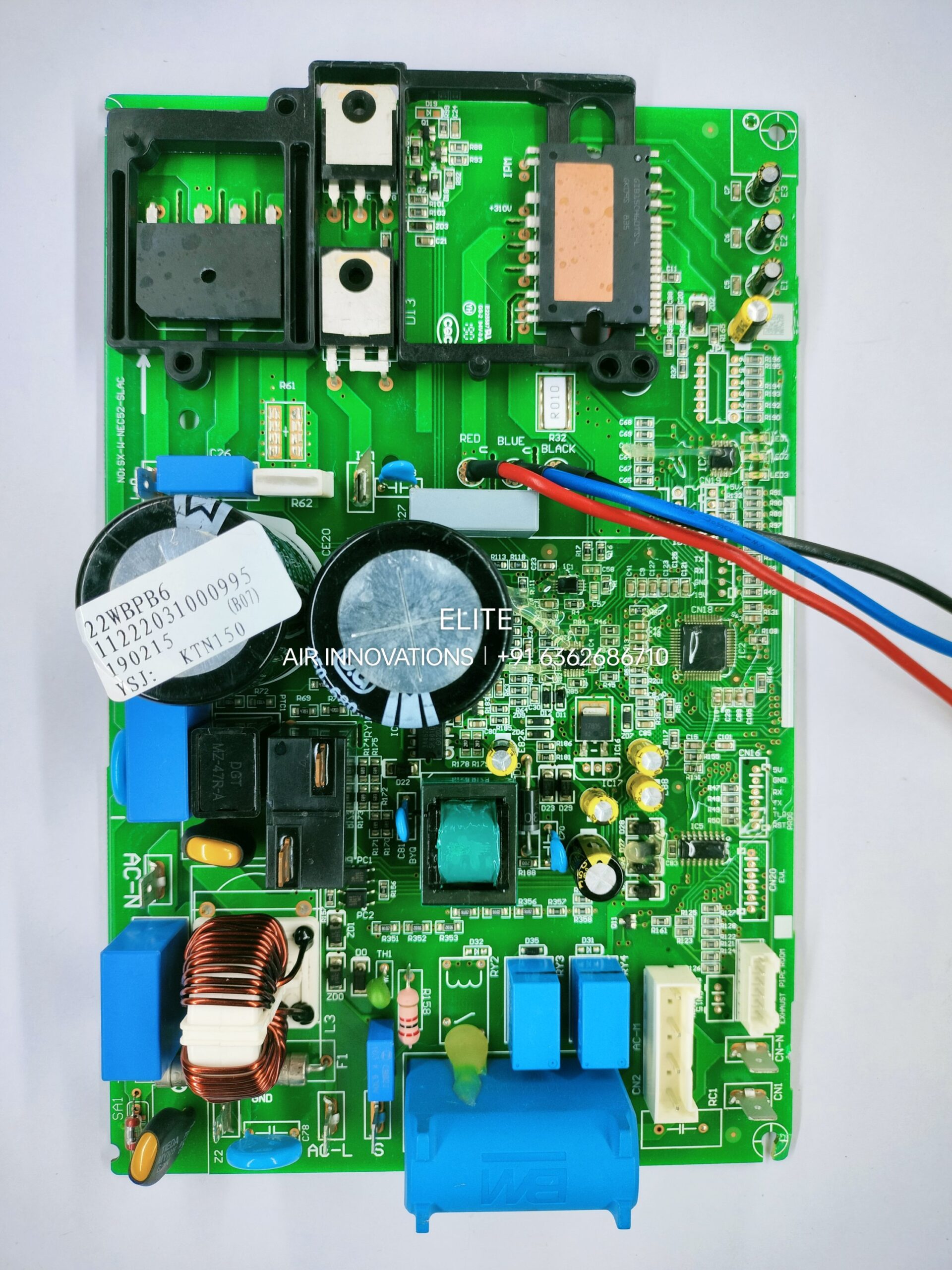

**** Figure: Lloyd outdoor inverter AC PCB (model 22WBPB6) – this control board synchronizes the compressor and fan motor with the indoor unit for efficient cooling.

Internally, the PCB uses microcontrollers and driver circuits to modulate the inverter-driven compressor, adjusting its speed based on the thermostat’s demand. It also powers the condenser fan to ensure proper heat exchange. The precise coordination of these components by the PCB ensures rapid cooling and stable temperature control. In addition, built-in diagnostics LEDs (not shown) indicate board status or error codes, helping technicians troubleshoot issues quickly.

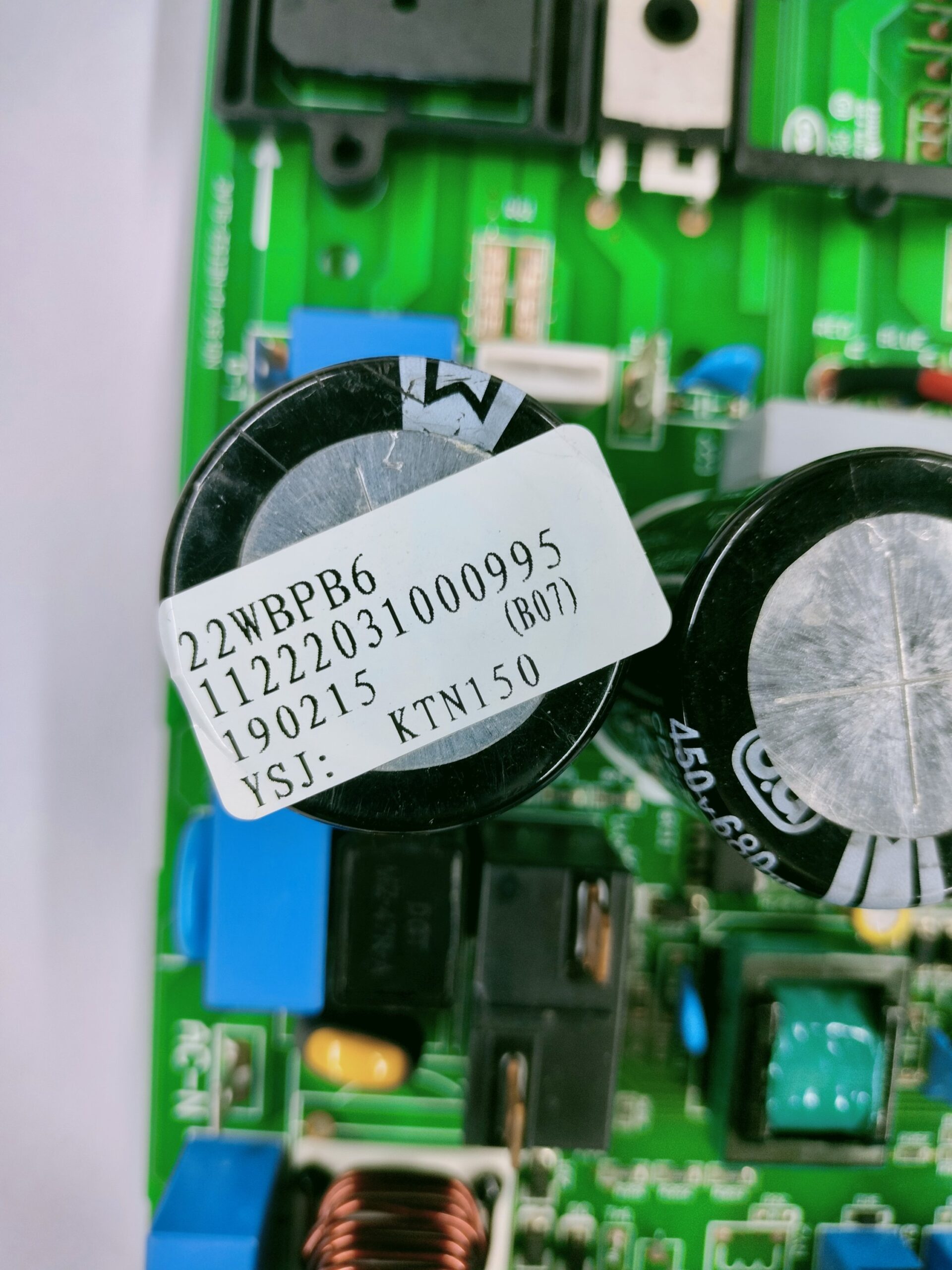

**** Figure: Close-up of a Lloyd AC outdoor unit’s PCB label. It shows the model number (22WBPB6) and other identifiers, which technicians use to verify the correct replacement part.

This PCB is a genuine Lloyd part (often manufactured by MEGMEET for Lloyd) and is fully compatible with the original unit. It carries the Lloyd brand legacy of reliable air conditioner components. By using this original replacement, you ensure that your AC’s inverter system functions as intended, extending the life of your unit and maintaining its warranty. Installation is straightforward – simply unplug the old board and plug in this one, with all connectors matching Lloyd’s design. No reprogramming is needed.

With this PCB installed, your Lloyd 2.0 Ton inverter split AC will cool efficiently and reliably. Trust this board to restore your air conditioner’s performance to like-new condition.

Sources: Official supplier and industry product descriptions (manufacturer and distributor data on Lloyd AC outdoor PCBs).

Technical Specifications (Bullet Points):

• Compatibility: Designed for Lloyd inverter split AC outdoor units (suitable for 2.0 Ton systems). It replaces the original control board in Lloyd ACX series outdoor units.
• Power Requirements: Compatible with standard 220–240 V AC power.
• Construction: Single-layer PCB with 1.6 mm copper foil and a ~2 mm fiberglass board thickness, providing a sturdy platform. Lead-free surface finish ensures high quality and corrosion resistance.
• Function: Coordinates compressor operation and outdoor fan speed; it processes signals between the indoor and outdoor units for efficient cooling.
• Reliability: Built to OEM standards by MEGMEET for Lloyd, this board offers durability and precise control circuitry.
• Diagnostics: Often equipped with status LEDs (flashing codes) for fault detection and easy troubleshooting by technicians.
• Plug-and-Play: Installs into the outdoor unit’s harness; direct replacement that restores original functionality without additional modifications.
